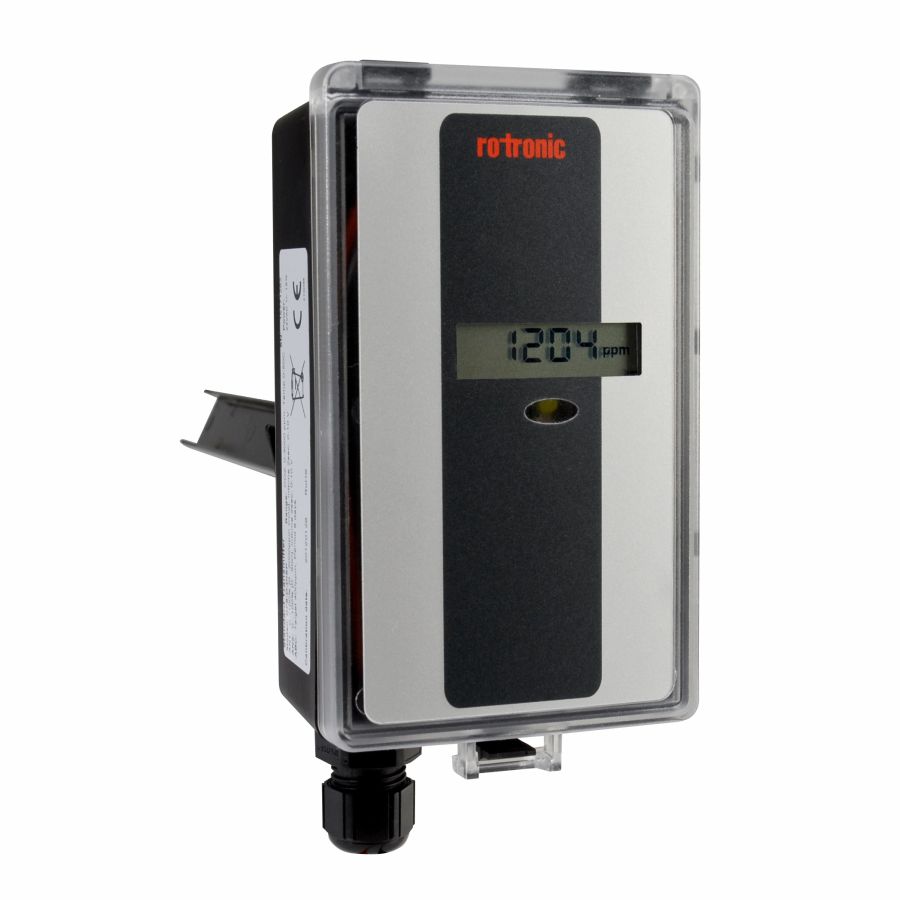

Duct mount design for insertion into ducts and vents.
Features:
- Measurement range: 0…2,000 ppm
- Measurement technique: infrared (NDIR) with automatic calibration
- Accuracy: ±30 ppm
- Power supply: 16…29 VDC/AC
- Output 1 (0…2,000 ppm): 0…10 VDC
- Output 2 (0…2,000 ppm): 4…20 mA (no output 2 in CF3-W-EU(US)-Disp-FLI)
- Range of application: 0…50 °C (30…120 °F) / 0…95 %RH
- Maintenance: not necessary
- Lifetime: >15 years
Applications:
For ventilation control in
- residential properties
- offices
- classrooms
- cinemas
- public rooms etc.
